Micro Nano Spectrophotometer for Lab Analysis UV VIS Long Wavelength Multifunctional Detecting Nucleic Acid Protein Instrument
Long Wavelength：180~910nm, Nucleic Acid Detection Range: 2~15000ng/uL
Cat. No. :
YB-Nano-2Brand :
YanbiotechProduct Origin :
ChinaProduct Introduction

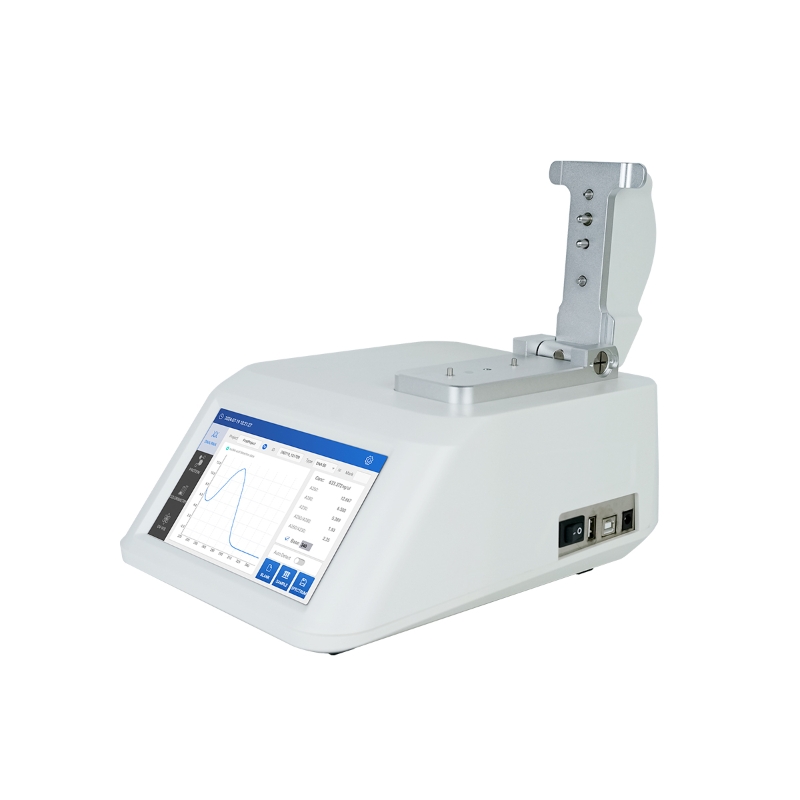

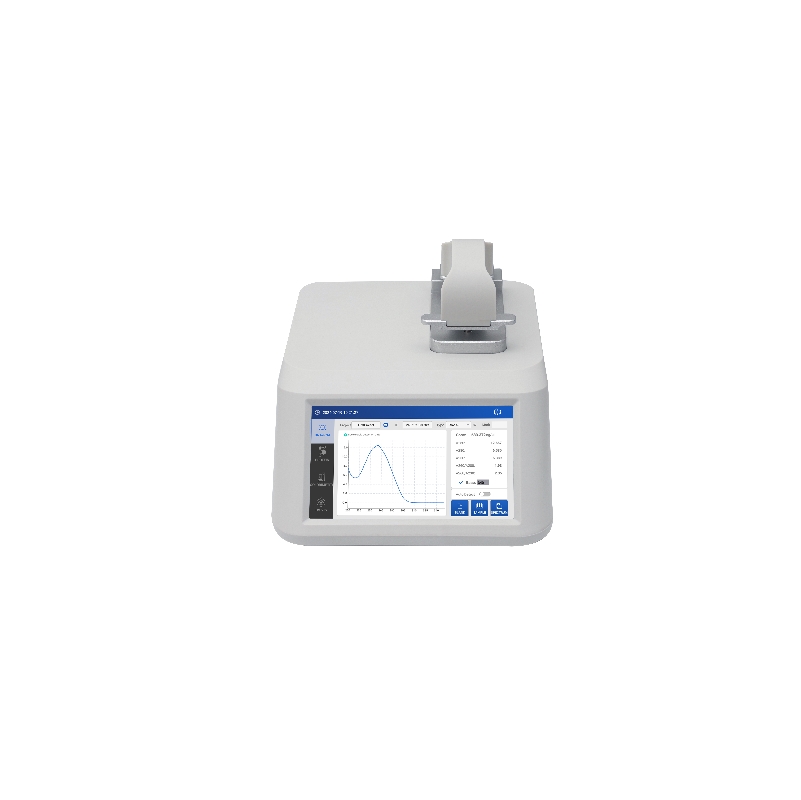

YB-Nano-2 Spectrophotometer, also known as a spectrometer, is an instrument that uses spectrophotometry to perform quantitative and qualitative analysis of substances. It is commonly used for the quantification of nucleic acids, proteins, and bacterial growth concentrations.
Product Specifications
| Product Name | Microvolume spectrophotometer | Microvolume spectrophotometer |
| Cat. No. | YB-Nano-1 | YB-Nano-2 |
| Sample Volume | 0.5~2uL | |
| Wavelength | 180-910nm | 180-910nm; cuvette(OD600):600±8nm |
| Nucleic Acid Range | dsDNA:2~4500ng/μL SSDNA:1.32~2970ng/μLRNA:1.6~3600ng/μL | dsDNA:2~15000ng/μL sSDNA:1.32~9900ng/μLRNA:1.6~12000ng/μL |
| Protein Range | A280:0.04~750mg/ml BSA:0.06~1119mg/ml IgG:0.03~547mg/ml Lysozyme:0.015~284mg/ml | |
|
Absorbance Range (equaled 10mm) |
0.04-90A | 0.04-300A; Cuvette(OD600):0~4A |
| Path Length | 0.2mm, 1.0mm, 1.2mm | 0.05mm, 0.2mm, 1.0mm |
| Absorbance Accuracy | ±1%(7.332 Abs at 260nm) | |
| Wavelength Accuracy | ±1nm | |
| Wavelength Precision | ±0.2nm | |
| Absorbance Precision | 0.002Abs | |
| Spectral Resolution | ≤1.5nm(FWHM@Hg 253.7nm) | |
| Measurement Time | <6S | |
| Light Source | Xenon flash lamp | |
| Detector | 2048-element linear CMOS array | |
| Sample pedestal | 304 Stainless steel and Quartz fiber | |
| Operation System | Android | |
| Data Export | USB | |
| Weight | 3.3kg | 3.4kg |
| Power of work / stand by | 48W/<6.5W | |
| Dimension(W×D×H) | 270×210×196(mm) | |
| Power Adaptor | 12V 4A | |
| OD600 | ||
| Absorbance Range | / | 0~4.000 Abs |
| Absorbance Stability | / | (0,3)≤0.5%,(3,4)≤1.5% |
| Absorbance Repeatability | / | (0,3)≤0.5%,(3,4)≤1.5% |
| Absorbance Accuracy | / | (0,2)≤0.005A,(2,3)≤1%,(3,4)≤2% |
Key Features
Save Samples: Sample volume as less as 0.5uL.
Short Detection Time: Less than 6seconds.
Wide Measurement Range: Protein A280 and Colorimetric Assay are available.
Easy Operation: 7-inch high-definition touch screen
Applications
🧬 Nucleic Acid Analysis: Rapid determination of the concentration and purity of DNA and RNA (via absorbance at 260 nm). The A260/A280 ratio is a key indicator for assessing protein contamination in nucleic acid samples.
🧪 Protein Analysis: Quantification of protein concentration using absorbance-based methods such as the Bradford assay, BCA assay, and Lowry assay.
🦠 Microbiology & Cell Culture: Measurement of microbial fermentation broth or cell culture density (OD600 value) to monitor the growth of bacteria, yeast, and other microorganisms.
🧪Enzyme Kinetics Studies: Monitoring changes in substrate or product concentration over time during an enzymatic reaction to calculate enzyme activity.
